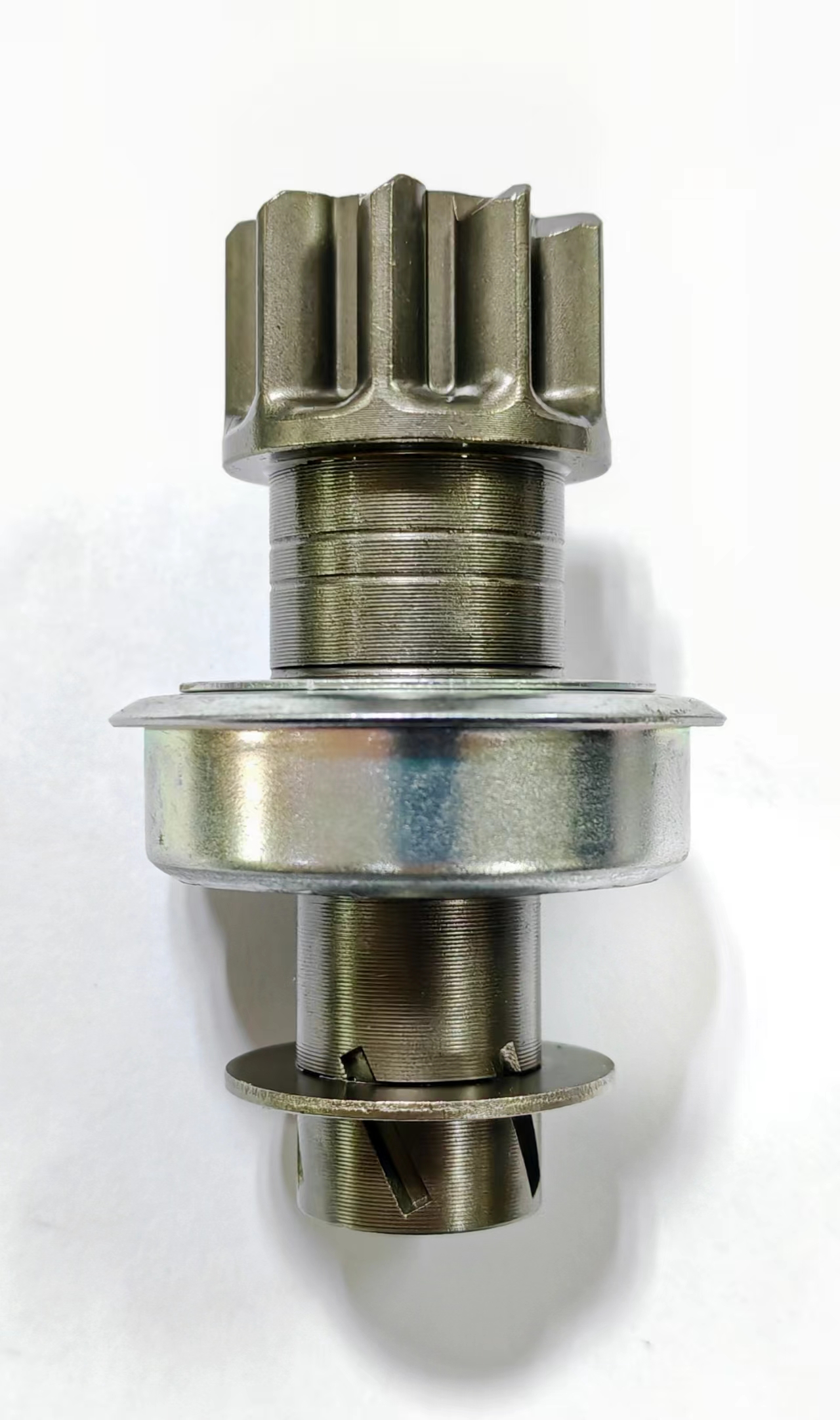

| One-way clutch | Dimensions | OEM NO | Application | |||||||||||||||
 |
HY NO | QDJ1115 | WAI 54-8243 2-2022-ND Denso 128000-7480 228000-2640 228000-1870 028300-6010 MD184420 Lester 17628 New Holland K0H2409801 John Deere AM107631 AM108390 John Deere AM124993 AM131296 Kohler 12-098-03 12-098-03S 24-098-01 24-098-01S United Technologies 5174720-M030SM SM51747 |
Cub Cadet Mower - Riding 365 Kohler 20HP Gas 2000-2002 3654 Kohler 25HP Gas 2000-2001 3660 Kohler 25HP Gas 2000-2001 Cub Cadet Mower - Zero Turn Z48 Kohler 18HP Gas 1997-1999 Z54 Kohler 20HP Gas 1997-1999 Cub Cadet Tractor - Compact 2130 Kohler 12.5HP Gas 1994-1995 2135 Kohler 12.5HP Gas 1994-1995 2185 Kohler 18HP Gas 1994-2001 Cub Cadet Tractor - Garden 1863 Kohler 18HP Gas 1993-1997 1864 Kohler 18HP Gas 1993-1997 2084 Kohler 20HP Gas 1994 |
Toro Mower - Zero Turn Z118 Z Master Kohler 18HP 1997 Z150 Z Master Kohler 20HP Gas 1999-2001 Z153 Z Master Kohler 23HP Gas 2001 Z222 Z Master Kohler 20HP Gas 1997 Z252 Z Master Kohler 22HP Gas 1998 Toro Tractor - Lawn 266-H Yard Tractor Kohler 16HP 1994-1996 267-H Lawn and Garden Tractor Kohler 17HP 1996-1998 268-H Lawn and Garden Tractor Kohler 18HP 1999-2002 268-H Yard Tractor Kohler 16HP 1994-1995 268-HE Lawn and Garden Tractor Kohler 18HP 2000-2003 269-H Lawn and Garden Tractor Kohler 19HP 1996-1998 270-H Lawn and Garden Tractor Kohler 20HP 1996-2002 270-HE Lawn and Garden Tractor Kohler 20HP 2000-2003 Also used on the following Kohler engine models: CH12.5-CH26, CV12.5-CV26, CH620-CH1000, CV624-CV730 |
|||||||||||||
| NO OF TEETH | 9 | |||||||||||||||||
| PINION DIA | 29.63 | |||||||||||||||||
| LENGTH | 75.5 | |||||||||||||||||
| NO OF SPLIN | 5 | |||||||||||||||||
| BUSHING DIA | 11 | |||||||||||||||||
| CLUTCH O/D | 41.5 | |||||||||||||||||
| ROTATION | CCW | |||||||||||||||||
| 12V/0.6KW | ||||||||||||||||||
