Chongqing Huayang One-way Clutch Manufacturing Co. Ltd.. | ||||||||
| 产品名称 | 长度 | 外圆一 | 外圆二 | 花键数 | 孔直径 | 中心距 | 销子直径 | 旋向 | |

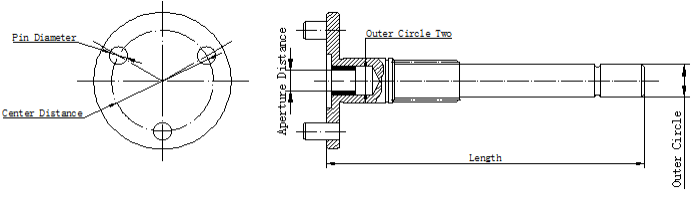

| Product name | LENGTH | Outer Circle | Outer Circle Two | Spline Number | Aperture Diameter | Center Distance | Pin Diameter | Rotation Direction | |
| ND-X-008-206 | 96.2 | 10 | 18 | 10 | 7 | 33.26 | 6 | CW | |
| ND-X-022-206 | 116.3 | 10 | 18 | 10 | 7 | 31.8 | 6 | CW | |
| ND-NDP-005-206-02 | 106.3 | 11 | 15 | 10 | 7 | 34.1 | 6 | CW | |
| ND-NDP-005-206-01 | 106.3 | 11 | 15 | 10 | 7 | 32.5 | 6 | CW | |
| ND-X-016-206 | 126.2 | 10 | 18 | 10 | 7 | 31.8 | 6 | CW | |
| ND-PG-002-206 | 91 | 10 | 18 | 10 | 5 | 30.5 | 8 | CW | |
| SND13A74-01-001 | 114 | 12 | 18 | 10 | 8 | 34.3 | 6 | CW | |
